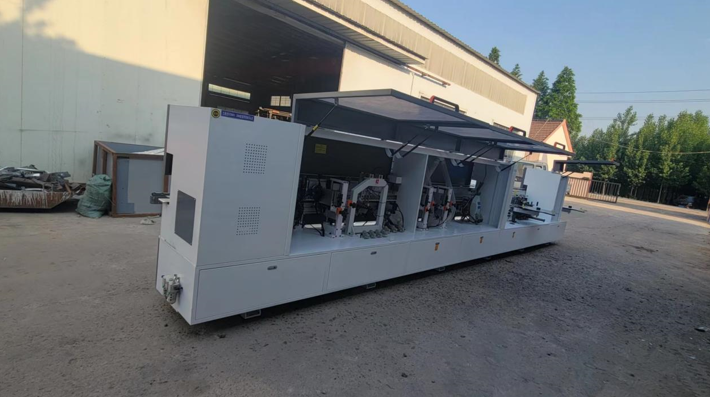

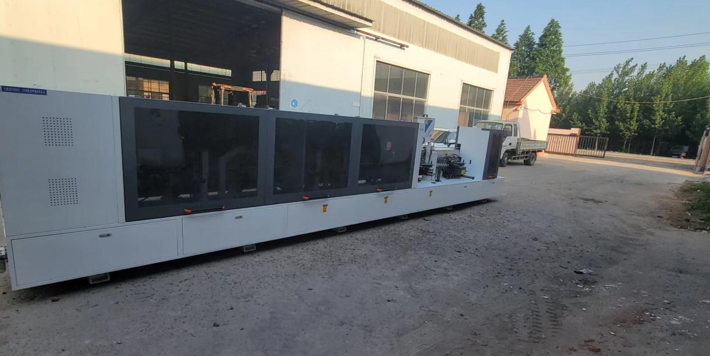

PUR heavy duty edge banding machine

Hongshuo CNC6Surface seamless edge banding machine configuration sheet
Pre-milling PUR glue machine double glue pot double repair automatic knife profile tracking chamfer configuration table

Conveying motor

Zhongyi Motor

Gummed motor

Zhongda Motor

Front and rear motor

South Korea Daewoo

Rough repair of motor

Taiwan UFC

Refine motor

Taiwan UFC

Polishing motor

Taiwan UFC

Low voltage control

Schneider, Germany

Frequency converter

Taiwan HL Inverter

Solenoid valve

Imported Yadke

Cylinder

Imported Yadke

Profiling tracking motor

UFC (optional imported motor need to add money)

Touch screen

Germany XUNJIE

PLC

Germany XUNJIE

complete machine

The fuselage integral steel plate 8 thick iron plate bending, after adjustment treatment after precision processing, after electrostatic spray

Edge speed

One minute high speed 23 meters This edge banding machine is equipped with professional high speed flat head high speed conveyor belt motor high speed gluing motor

Pressure beam

aluminum alloy pressure beam

Function configuration

This 6-sided seamless heavy-duty edge banding machine has the following functions: pre-milling, cleaning and separation, gluing pot, 6-wheel pressing and sticking cleaning-free PUR gluing pot + PUR two-color gluing machine, 6-wheel pressing and sticking, single guide rail front and rear head alignment, rough trimming, fine trimming automatic knife adjustment, profile tracking, edge scraping automatic knife adjustment, directional blowing, cleaning, polishing 1 polishing 2

The equipment is equipped with a set of common operation and repair toolbox.

Wearing Tianying diamond cutters, 2 sets of vacuum cleaners, 5.5 kW one set of cleaning fluid, one barrel of motor, 3 years warranty
